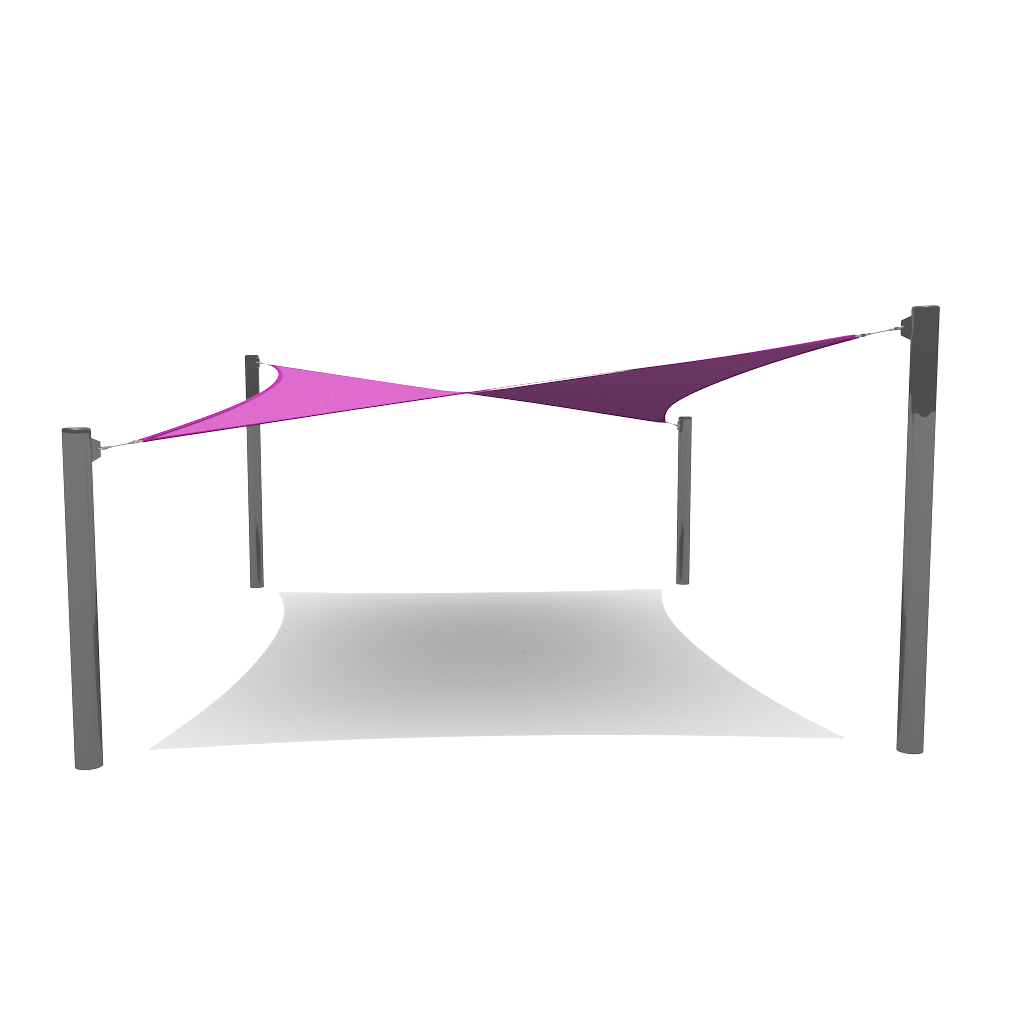

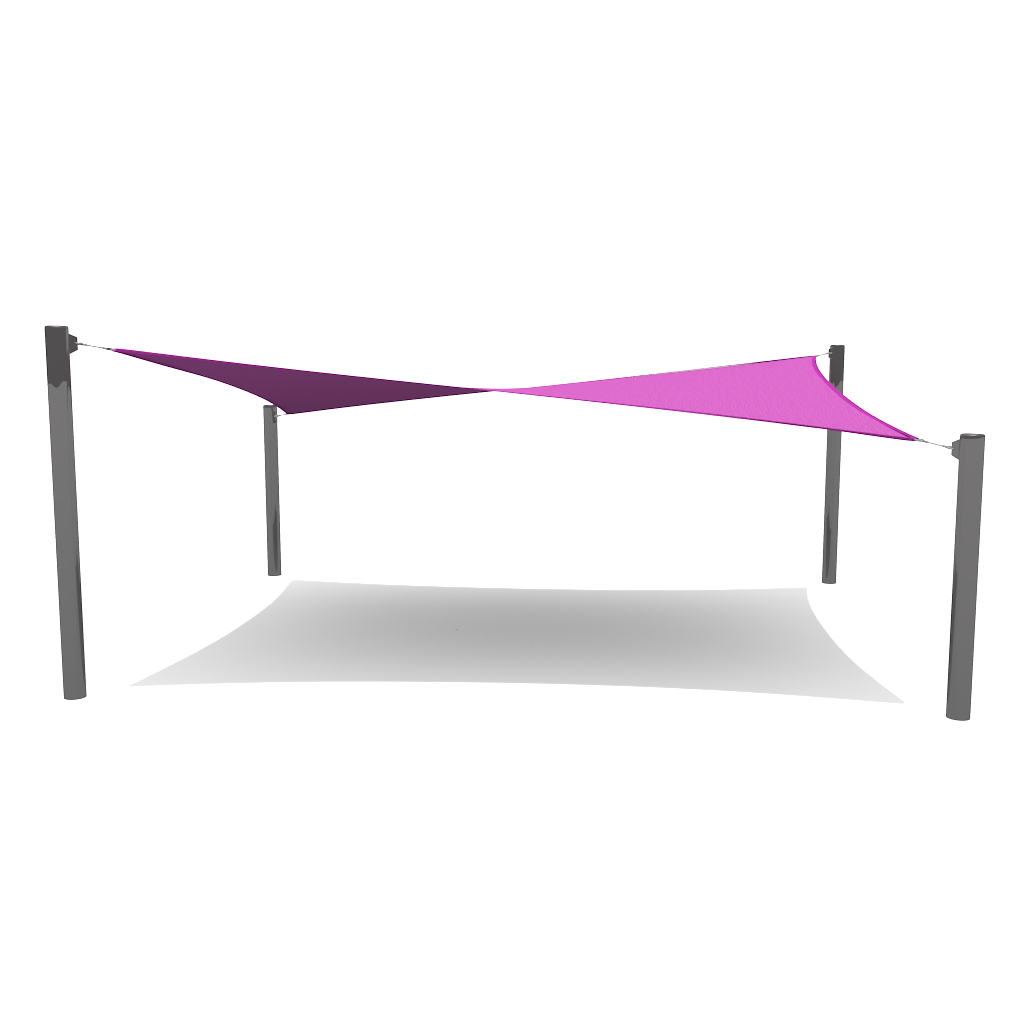

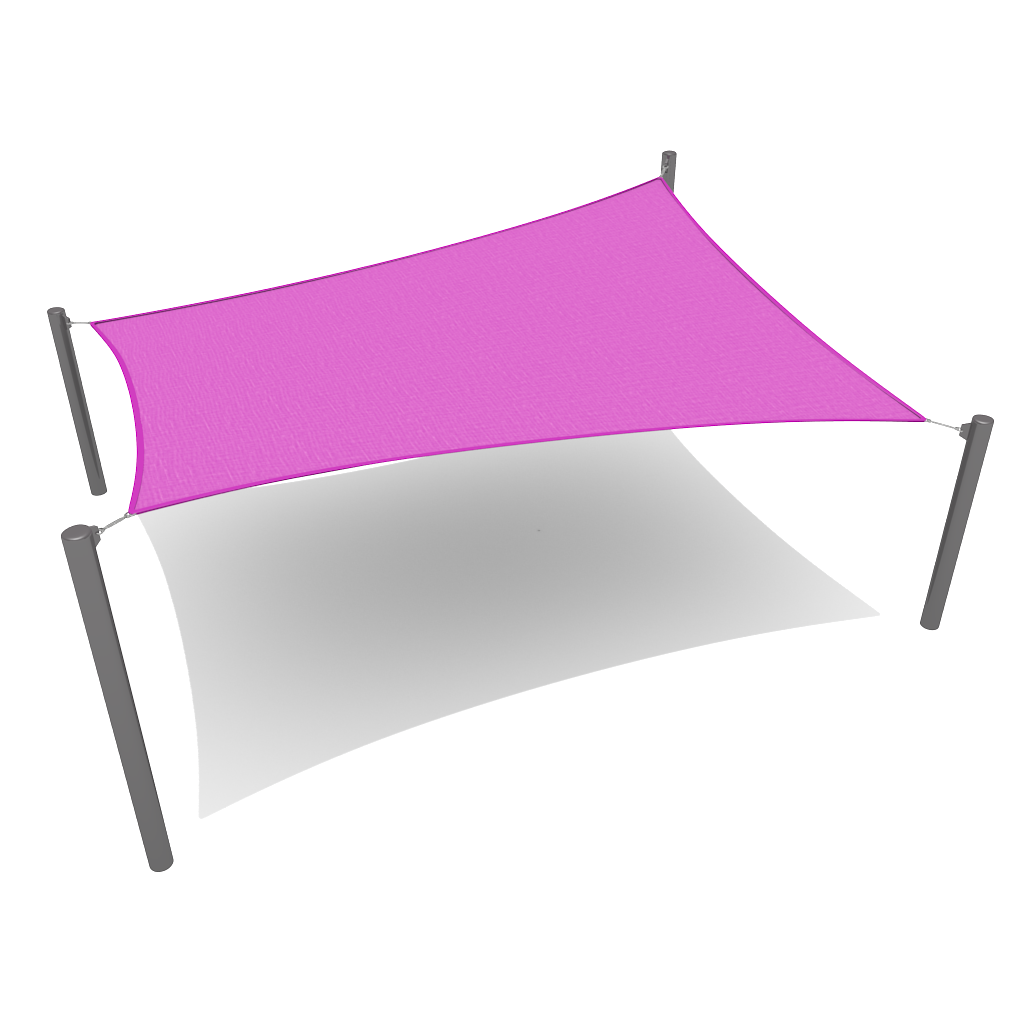

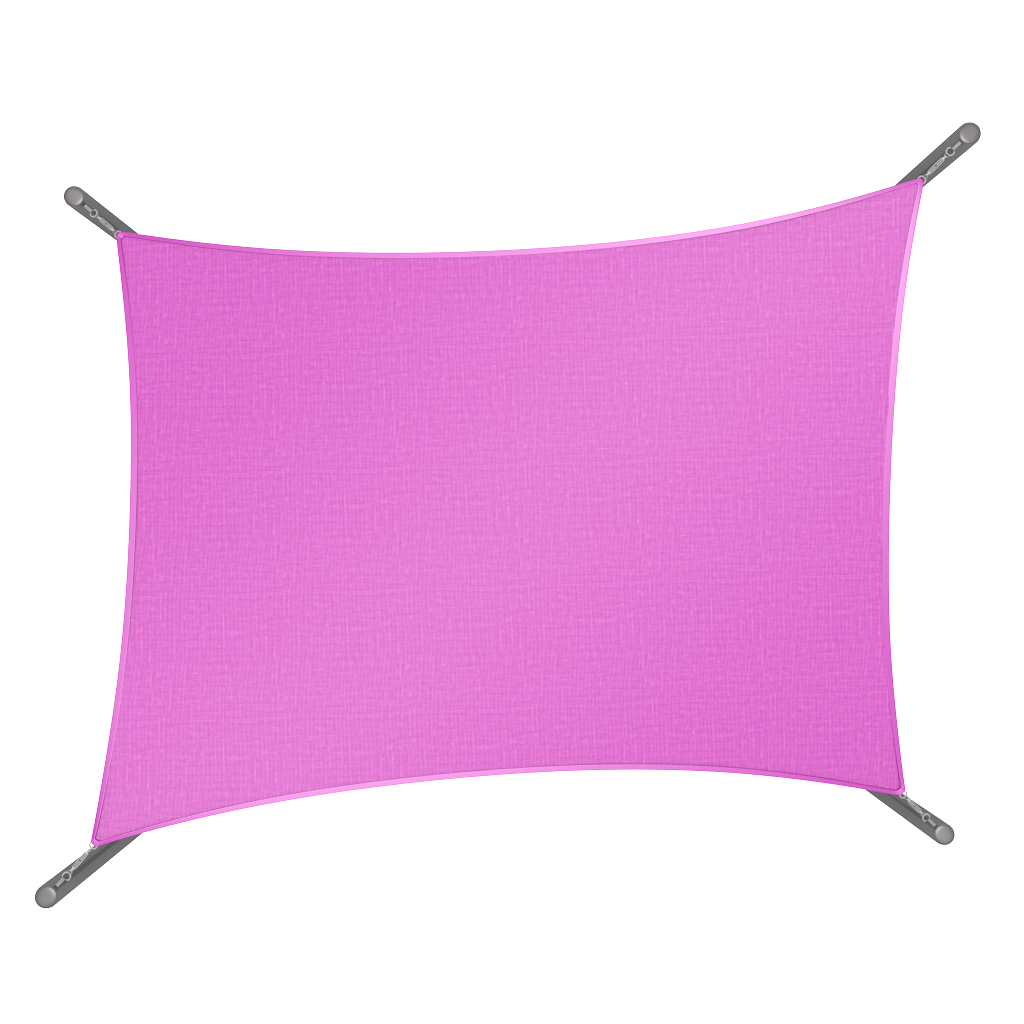

Rectangle Shade Sail
Rectangle Shade Sail
If you’re looking to shade a large outdoor area, square or rectangular sails might be your best bet. Just be aware that because of their larger size, they may require sturdier support structures than their triangular counter-parts.
Hardware kits can be selected below or browse our hardware store for other hardware.
Poles and hardware are not included. Hardware can be purchased separately.
Price will update as options are chosen.
**IMPORTANT** When calculating the size of the shade sail that you would need for a certain area, be sure to allow for about 12 to 18 inches of space between the shade sails corner d-rings and the mounting points for the necessary mounting hardware including turnbuckles. It is better for the shade sail to be too small than too large. If it is too large, you will not be able to tighten when necessary, but if it is too small, you can still attach the sail to the mounting points with the help of a few lengths of chain or a piece of aircraft cable.
Due to fabrication tolerances and fabric stretch, finished shade sail dimensions may vary +/- 2 inches. Due to fabric width and depending on the size of the shade sail the finished sail may have seams.
All shade sails are made to order and therefore all sales are final. No returns or refunds will be accepted.
*** Hardware Mounting equipment is NOT automatically included with your shade sails purchase. Add on a mounting kit to ensure you have everything you need to install your shade sail***
We exclusively offer SolaMesh hardware which is made from high-strength stainless steel 316 and is built to hold under maximum tension.
Please note, add-on Kits are for metal pole attachment points only. If any anchors awill be attached to any other point other than a metal pole, please look through our hardware product page and select the appropriate hardware needed.
Rectangle options (all include: 4 turnbuckles, 4 eye bolts w/ nut & washer, 2 D-Shackles).
Triangle options (all include: 3 turnbuckles, 3 eye bolts w/ nut & washer, 2 D-Shackles).
Light Duty (Size: 5/16 or 8mm; Breaking load: 3,417lbs). Light Duty is recommended for shade sails with longest side of up to 14 feet.
Standard Duty (Size: ⅜ or 10mm; Breaking load: 4,946lbs). Medium Duty is recommended for shade sails with longest side of up to 24 feet.
Heavy Duty (Size: 7/16 or 12mm; Breaking load: 7,081lbs). Heavy Duty is recommended for shade sails with longest side of 25 feet and up.
We Offer Installation!
We are excited to offer installation services across most of the contiguous state of Texas. In order to obtain a quote, please email, call, or simply add the product of your choice to a quote, fill out a little information and be sure to check the box to request installation pricing. For installation, be sure the area is free of debris and any underlying issues that would make digging difficult. Each customer takes responsibility for their own site prep, permitting, and mulch/surfacing unless otherwise arranged. We do not take responsibility for permitting — you should consult your local authorities or construction professionals as needed.
In Ground Mount– In Ground Mount is the most common system. That is when you bury the pole directly into the ground using rebar and concrete.
Surface Mount – Surface Mount is mounted and bolted directly to a stable and solid surface. This approach would be ideal for a concrete pad or a pool area, for example. Anchor bolts and plates are generally required for this footer type.
Anchors– Anchoring to an existing structure such as posts, buildings, and roofs is only recommended for small tension projects.
|Yarn||Knitted UV-stabalized HDPE|
|Construction||Monofilament & tape|
|Temperature range (C°)||-30 to +70|
|Approximate thickness (mm)||~1.6|
|Tensile strength- warp(N/50mm)(AS 2001.2.3.1)||670 N/50mm|
|Elongation at break- weft(%) (AS2001.2.3.2)||117%|
|Wing tear-warp(mean) (AS2001.2.10)||184N|
|Wing tear- weft (mean) (AS2001.2.10)||347N|
|Burst pressure (kPa) (AS4878.5- Method B)||3500 kPa|
|Burst force (N) (AS2001.2.19)||1937 N|
|Flammability Index (range0-100)||12|
Statement of Limited Warranty:
- Manufacturing lead-time from Company’s receipt of the “Notice To Proceed” is approximately 6 to 8 weeks for standard structures, and 8 to 12 weeks for custom structures. Delivery is approximately 1 week thereafter. Delivery of structures may be prior to or at the start of assembly. Please note that these timelines do not include approval or permitting timeframes.
- Once the item has shipped, you will receive a tracking number and important instructions for unloading. Ship dates are a best estimate and not guaranteed. Shipments can take up to 10 days in transit.
- Every order with complex shipping requirements receives shipping instructions.
Unless a loading dock is readily available, this equipment ships via curbside delivery.
- Cantilever systems generally benefit from having a forklift for unloading, which is typical in the industry.
- There are many instances where the crates and pallets can be pulled apart by hand and unloaded as well, but a forklift is generally the quickest way to unload the product and is what trucking companies recommend to avoid possible detention charges (unloading that takes more than 3 hours).
- Please see our FAQ for more information.
Talk To An Expert
Talk To An Expert
Features and Benefits
Unlike commercial textiles such as PVC, polypropylene (PP) and polyethylene (PE) products are fully recyclable.
Engineered in Australia for the harshest conditions, fabric has a minimum 45 mph wind load and a 5 PSF Snow Load.
Shrink Proof + Mold Proof
Any possibility of shrinking is virtually eliminated due to our heat set fabric process. Strong HDPE won’t rot or absorb moisture.
10-Year Fabric Warranty
10-year UV degradation warranty on Gale Pacific 95 340 fabric.
Up to 98% UV Protection
UV-stabilized HDPE monofilament and tape yarn provides a UV Block range of 89.3%–98.2%.
Air Flow Channeling
Knitted lock-stitch construction for fray and tear resistance, offers more air movement and better channeling of cool breezes.
