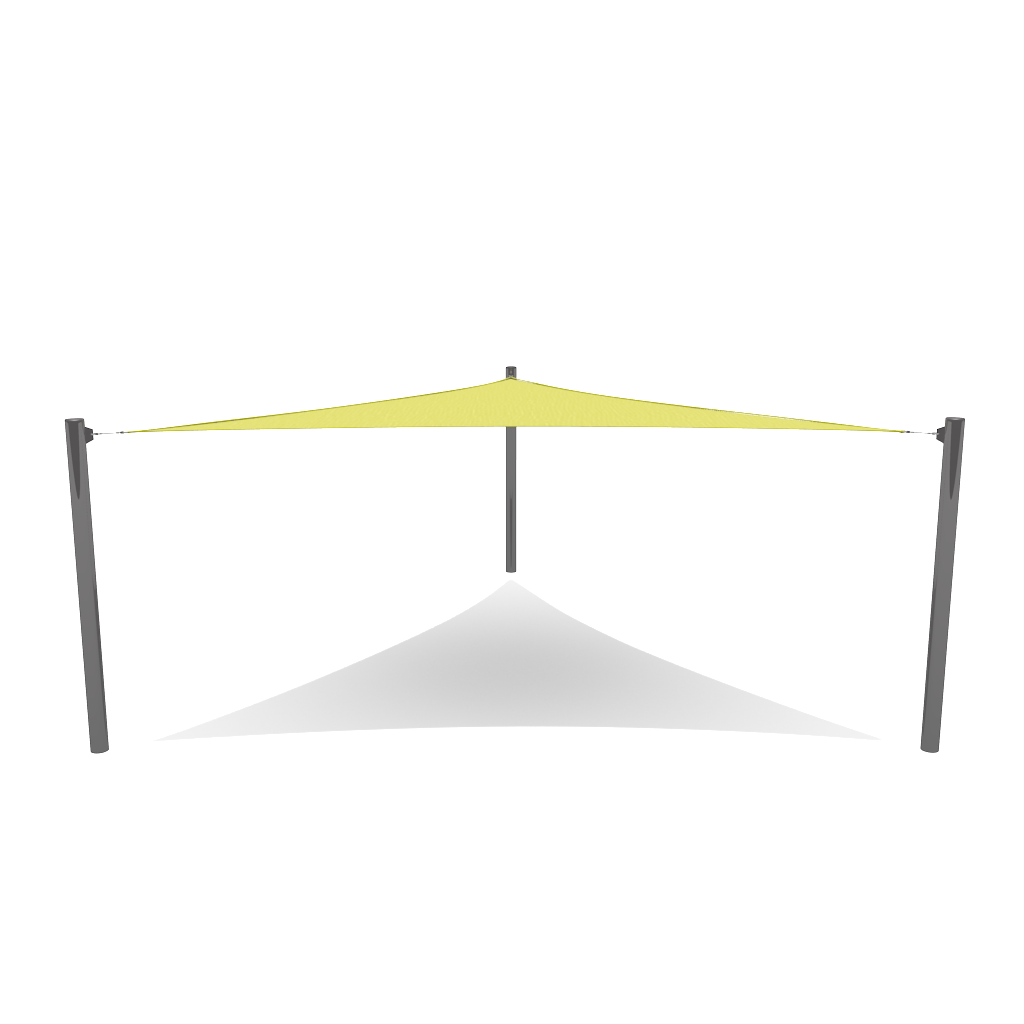

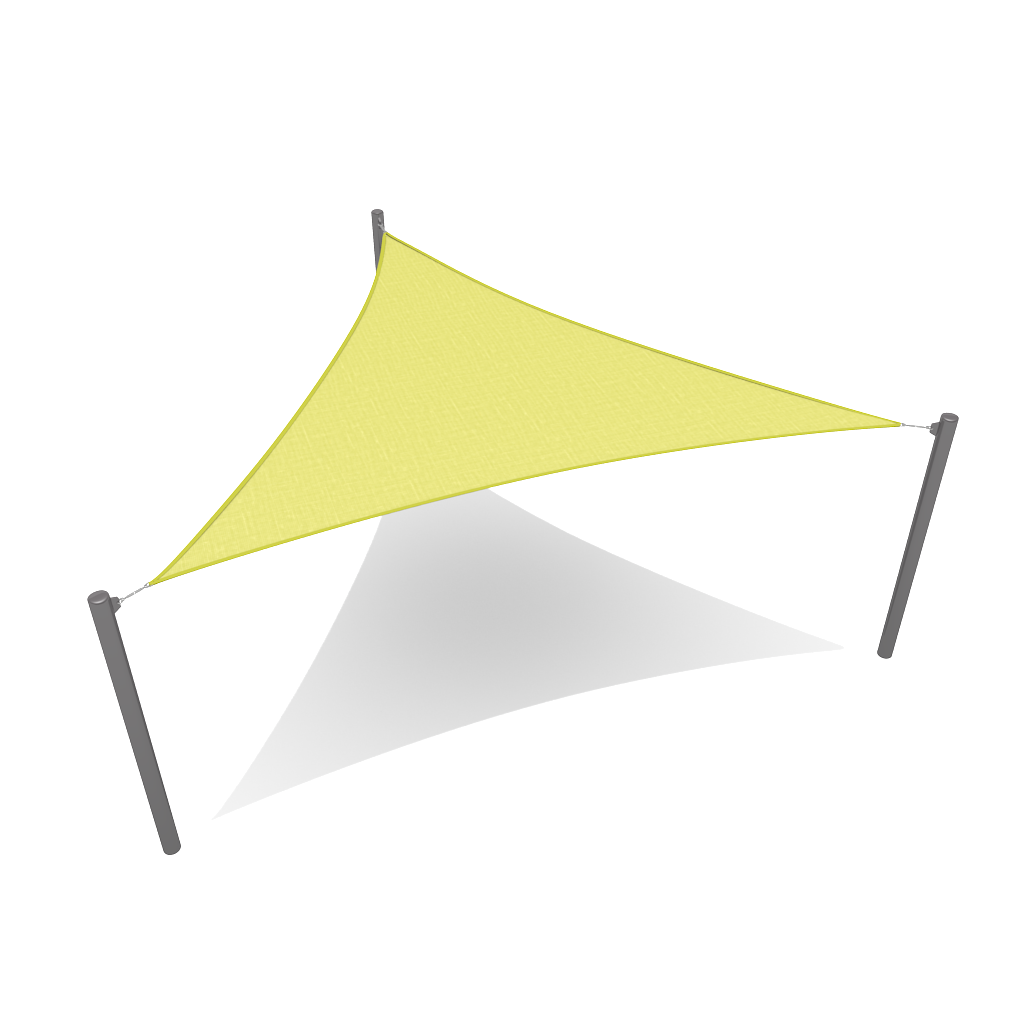

Equilateral Shade Sail

Equilateral Shade Sail

A triangle shaped shade sail will offer less shade than a square, but it’s more spatially flexible and can fit into smaller areas better. Plus, it has one less fixing point, so you can be a little more imaginative with it. If you choose to go with a triangular shade sail but you’re still keen on significant protection, consider layering two triangles across one another for a statement look that’s functional too.

Hardware kits can be selected below or browse our hardware store for other hardware.

Poles and hardware are not included. Hardware can be purchased separately.

Price will update as options are chosen.

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out

**IMPORTANT** When calculating the size of the shade sail that you would need for a certain area, be sure to allow for about 12 to 18 inches of space between the shade sails corner d-rings and the mounting points for the necessary mounting hardware including turnbuckles. It is better for the shade sail to be too small than too large. If it is too large, you will not be able to tighten when necessary, but if it is too small, you can still attach the sail to the mounting points with the help of a few lengths of chain or a piece of aircraft cable.Due to fabrication tolerances and fabric stretch, finished shade sail dimensions may vary +/- 2 inches. Due to fabric width and depending on the size of the shade sail the finished sail may have seams.All shade sails are made to order and therefore all sales are final. No returns or refunds will be accepted.

Additional Hardware

Hardware Equipment

*** Hardware Mounting equipment is NOT automatically included with your shade sails purchase. Add on a mounting kit to ensure you have everything you need to install your shade sail***
We exclusively offer SolaMesh hardware which is made from high-strength stainless steel 316 and is built to hold under maximum tension.

Please note, add-on Kits are for metal pole attachment points only. If any anchors awill be attached to any other point other than a metal pole, please look through our hardware product page and select the appropriate hardware needed.

Rectangle options (all include: 4 turnbuckles, 4 eye bolts w/ nut & washer, 2 D-Shackles).

Triangle options (all include: 3 turnbuckles, 3 eye bolts w/ nut & washer, 2 D-Shackles).

Light Duty (Size: 5/16 or 8mm; Breaking load: 3,417lbs). Light Duty is recommended for shade sails with longest side of up to 14 feet.


Standard Duty (Size: ⅜ or 10mm; Breaking load: 4,946lbs). Medium Duty is recommended for shade sails with longest side of up to 24 feet.


Heavy Duty (Size: 7/16 or 12mm; Breaking load: 7,081lbs). Heavy Duty is recommended for shade sails with longest side of 25 feet and up.

Installation

We Offer Installation!
We are excited to offer installation services across most of the contiguous state of Texas. In order to obtain a quote, please email, call, or simply add the product of your choice to a quote, fill out a little information and be sure to check the box to request installation pricing. For installation, be sure the area is free of debris and any underlying issues that would make digging difficult.  Each customer takes responsibility for their own site prep, permitting, and mulch/surfacing unless otherwise arranged. We do not take responsibility for permitting — you should consult your local authorities or construction professionals as needed.

Can I Install This?
While the short answer is yes, please be careful. We have had many customers install shades themselves leading to a resulting sagging & sinking structure which in turn led us to reinstalling it for them. However. with the right talent and equipment, it may not go as smoothly as it does for our professional installation crews, but it can be done as a budget-conscious solution for smaller projects such as residential! Please take note that installing a shade structure is a construction project. There will be quite a bit of digging and work to balance and set up your shade structure. Most people don’t realize how involved putting together a large commercial grade structure can be.

Mounting Options, Depending on the Product
When it comes to shade structures, there are a few options for mounting. Which one you choose generally depends upon your installation area and surface/soil.
In Ground Mount– In Ground Mount is the most common system. That is when you bury the pole directly into the ground using rebar and concrete.
Surface Mount – Surface Mount is mounted and bolted directly to a stable and solid surface. This approach would be ideal for a concrete pad or a pool area, for example. Anchor bolts and plates are generally required for this footer type.

Uncommon Mounting Types – (We Can Quote Upon Request) –
Recessed Mounting– Recessed Mounting is where the shade structure is mounted onto a concrete footer that is buried.
Spread Footers– Used when there is an issue with the depth or soil in the installation area. The shade posts are not as long as with other mounts and requires more concrete and labor to install.
Anchors– Anchoring to an existing structure such as posts, buildings, and roofs is only recommended for small tension projects.

Fabric Specifications

Yarn Knitted UV-stabalized HDPE
Construction Monofilament & tape
Pattern Lock-stitch knitted
Temperature range (C°) -30 to +70
Approximate thickness (mm) ~1.6
Tensile strength- warp(N/50mm)(AS 2001.2.3.1) 670 N/50mm
Elongation at break- weft(%) (AS2001.2.3.2) 117%
Wing tear-warp(mean) (AS2001.2.10) 184N
Wing tear- weft (mean) (AS2001.2.10) 347N
Burst pressure (kPa) (AS4878.5- Method B) 3500 kPa
Burst force (N) (AS2001.2.19) 1937 N
Flammability Index (range0-100) 12
Lead Not detected
Pthalate Not detected

Warranty

Statement of Limited Warranty:

•The structural integrity of all supplied steel is warranted for 5 years.
•If assembly is provided by the Company, workmanship of the structure is covered for one year, including labor for the removal of any failed part, disassembly (if necessary), cost of shipping, and reassembly.
•All steel surface finishes are warranted for one year.
•Gale Pacific Commercial 95™ fabrics all carry a ten year limited manufacturer’s warranty against failure from significant fading, deterioration, breakdown, outdoor heat, cold, or discoloration. Should the fabric need to be replaced under the warranty, the Company will manufacture and ship a new replacement fabric at no charge for the first five years, thereafter pro-rated at 20% per year over the remaining five years. The following are exceptions to the preceding warranty terms:
•Individual fabric tops measuring greater than 40’ in length are covered by a non-prorated five year warranty;
•Serge Ferrari Soltis 502 waterproof membrane is subject to an eight year pro-rated warranty.
•Sewing thread is warranted for ten years.
•These limited warranties are effective from the date of sale, or, if assembly is provided by the Company, from the date of the invoice.
•In its sole discretion, the Company will repair and or/replace defective structures, products or workmanship, or refund that portion of the price related to the defective product, labor, or service rendered.
•The Company reserves the right, in cases where certain fabric colors have been discontinued, to offer the Purchaser or Owner a choice of available alternative colors to replace the warranted fabric. The Company does not guarantee that any particular color will be available for any period of time, and reserves the right to discontinue any color for any reason, without recourse by the Purchaser or Owner of the discontinued fabric color.
•Should the Purchaser or Owner sell the structures to another party, the warranty cannot be transferred to the new owner without a complete and thorough on-site inspection performed by a Company representative. Please contact the Company at support@maxshade.com for more details.
•All warranty claims covering Company supplied structures, products, and services must be submitted by Purchaser or Owner in writing to the Company within thirty days from the date of discovery of the alleged defect and must include a detailed description and applicable photographs of the alleged defect or problem. Warranty claims should be submitted by email to support@maxshade.com
•Purchaser or Owner agrees that venue for any court action to enforce these limited warranties shall be in the City or County of Dallas in the State of Texas, USA.
•These limited warranties are void if:
•the supplied structures, products, services and/or labor are not paid for in full;
•the structures are not assembled in strict compliance with Maxshade specifications;
•any changes, modifications, additions, or attachments are made to the structures in any way, without prior written approval from the Company. Specifically, no signs, objects, fans, light fixtures, etc. may be hung from the structures, unless specifically engineered by the Company.
•These limited warranties do not cover defects and/or damages caused by:
•normal wear and tear;
•misuse, willful or intentional damage, vandalism, contact with chemicals, cuts and Acts of God (i.e. tornado, hurricane, micro/macros burst, earthquake, wildfires, ice storms etc.);
•snow or wind loads in excess of the designed load parameters engineered for the supplied structures;
•use, maintenance, neglect, repair, and/or service inconsistent with the Company’s written care and maintenance instructions, provided with the order.
•The limited warranties explicitly exclude:
•workmanship related to assembly not provided by the Company or its agents;
•fabric curtains, valances, and flat vertical panels;
•fabric tops installed on structures that were not engineered and originally supplied by the Company.
•THE COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, LIQUIDATED, EXEMPLARY, OR PUNITIVE DAMAGES, OR ANY LOSS OF REVENUE, PROFIT, USE OR GOODWILL, WHETHER BASED UPON CONTRACT, TORT (INCLUDING NEGLIGENCE), OR ANY OTHER LEGAL THEORY, ARISING OUT OF A BREACH OF THIS WARRANTY OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, OPERATION OR REPAIR OF ANY PRODUCT OR SERVICE. IN NO EVENT WILL THE COMPANY BE LIABLE FOR ANY AMOUNT GREATER THAN THE PURCHASE PRICE FOR ANY PRODUCT OR SERVICE PROVIDED BY THE COMPANY.
•THE FOREGOING LIMITED WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY FOR THE COMPANY’S PRODUCTS AND SERVICES, AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, IN LAW OR IN FACT. SELLER SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE, AND ANY IMPLIED WARRANTIES ARISING OUT OF COURSE OF DEALING OR PERFORMANCE OR TRADE USAGE. PURCHASER, BY ACCEPTANCE AND USE OF THIS LIMITED WARRANTY, WAIVES ANY RIGHTS IT WOULD OTHERWISE HAVE TO CLAIM OR ASSERT THAT THIS LIMITED WARRANTY FAILS OF ITS ESSENTIAL PURPOSE.

Shipping

  • Manufacturing lead-time from Company’s receipt of the “Notice To Proceed” is approximately 6 to 8 weeks for standard structures, and 8 to 12 weeks for custom structures. Delivery is approximately 1 week thereafter. Delivery of structures may be prior to or at the start of assembly. Please note that these timelines do not include approval or permitting timeframes.
  • Once the item has shipped, you will receive a tracking number and important instructions for unloading. Ship dates are a best estimate and not guaranteed. Shipments can take up to 10 days in transit.
  • Every order with complex shipping requirements receives shipping instructions.
    Unless a loading dock is readily available, this equipment ships via curbside delivery.
  • Cantilever systems generally benefit from having a forklift for unloading, which is typical in the industry.
  • There are many instances where the crates and pallets can be pulled apart by hand and unloaded as well, but a forklift is generally the quickest way to unload the product and is what trucking companies recommend to avoid possible detention charges (unloading that takes more than 3 hours).
  • Please see our FAQ for more information.

Custom Structure

Fabric Samples
View full details
  • 100% Recyclable

    Unlike commercial textiles such as PVC, polypropylene (PP) and polyethylene (PE) products are fully recyclable.

  • Storm Approved

    Engineered in Australia for the harshest conditions, fabric has a minimum 45 mph wind load and a 5 PSF Snow Load.

  • Shrink Proof + Mold Proof

    Any possibility of shrinking is virtually eliminated due to our heat set fabric process. Strong HDPE won’t rot or absorb moisture.

  • 10-Year Fabric Warranty

    10-year UV degradation warranty on Gale Pacific 95 340 fabric.

  • Up to 98% UV Protection

    UV-stabilized HDPE monofilament and tape yarn provides a UV Block range of 89.3%–98.2%.

  • Air Flow Channeling

    Knitted lock-stitch construction for fray and tear resistance, offers more air movement and better channeling of cool breezes.

  • Car Park Covers

  • Fence Screens

  • Playground Shading

  • Pool Shading

  • Patio Shading
