Stainless Steel Twisted Dee Shackle
Stainless Steel Twisted Dee Shackle
Regular price
$9.95
Regular price
Sale price
$9.95
Unit price
per
Couldn't load pickup availability

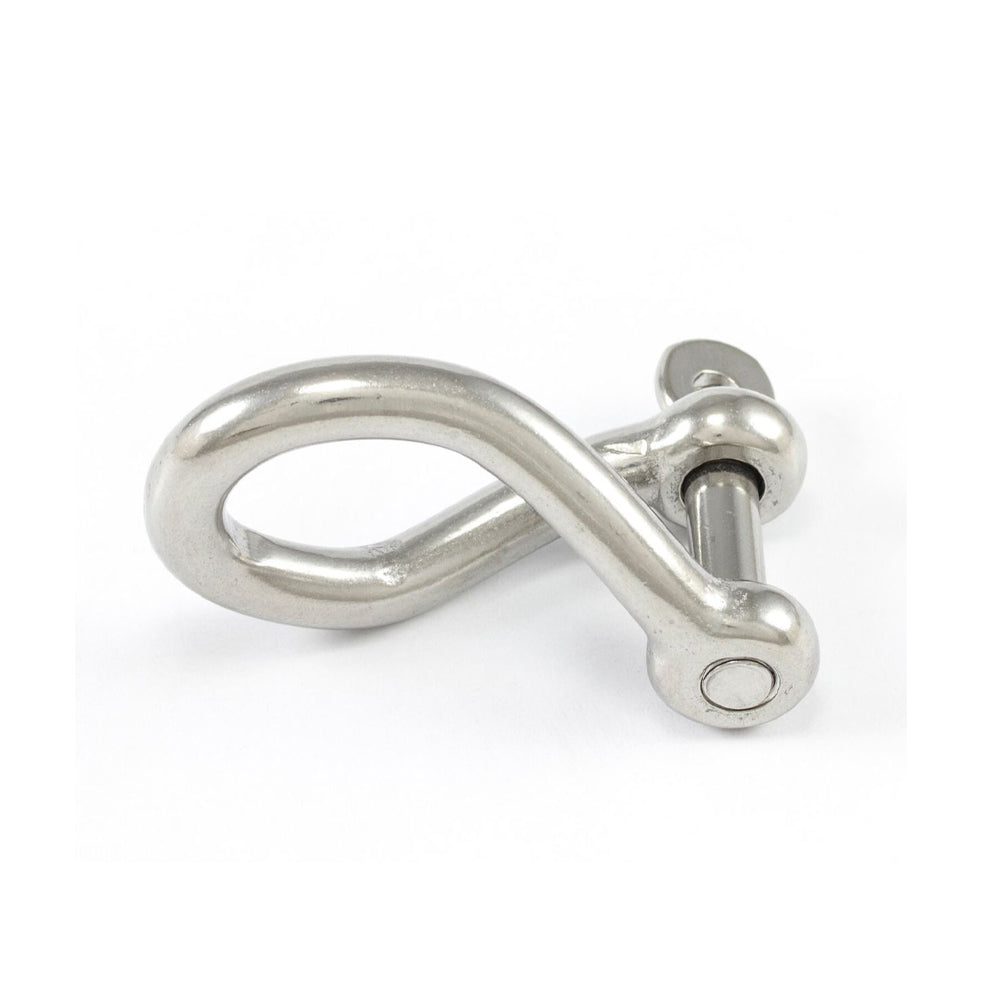

The twisted dee shackle will provide you tension control and is made of high-grade stainless steel 316. This fastener is what connects the shade sail fabric and the base structure to give longer life.
The twisted dee shackle is perfect for both lifting and rigging up your 8mm or 10mm shade sail system.
Specifications
| Min Breaking Load | Length | Size Opening | |
|---|---|---|---|
| 8mm | 5,328 lbs. (2,422 kg) | 48mm (1.89 in) | 16 mm (0.63 in) |
| 10mm | 8,385 lbs. (3,812 kg) | 60 mm (2.36 in) | 20 mm (0.79 in) |
**Note/ Disclaimer** The finished structure should be properly designed by a professional engineer and installed by a qualified contractor in accordance with local building codes. It is the responsibility of the fabricator within these parameters to determine the proper hardware for a particular installation.
