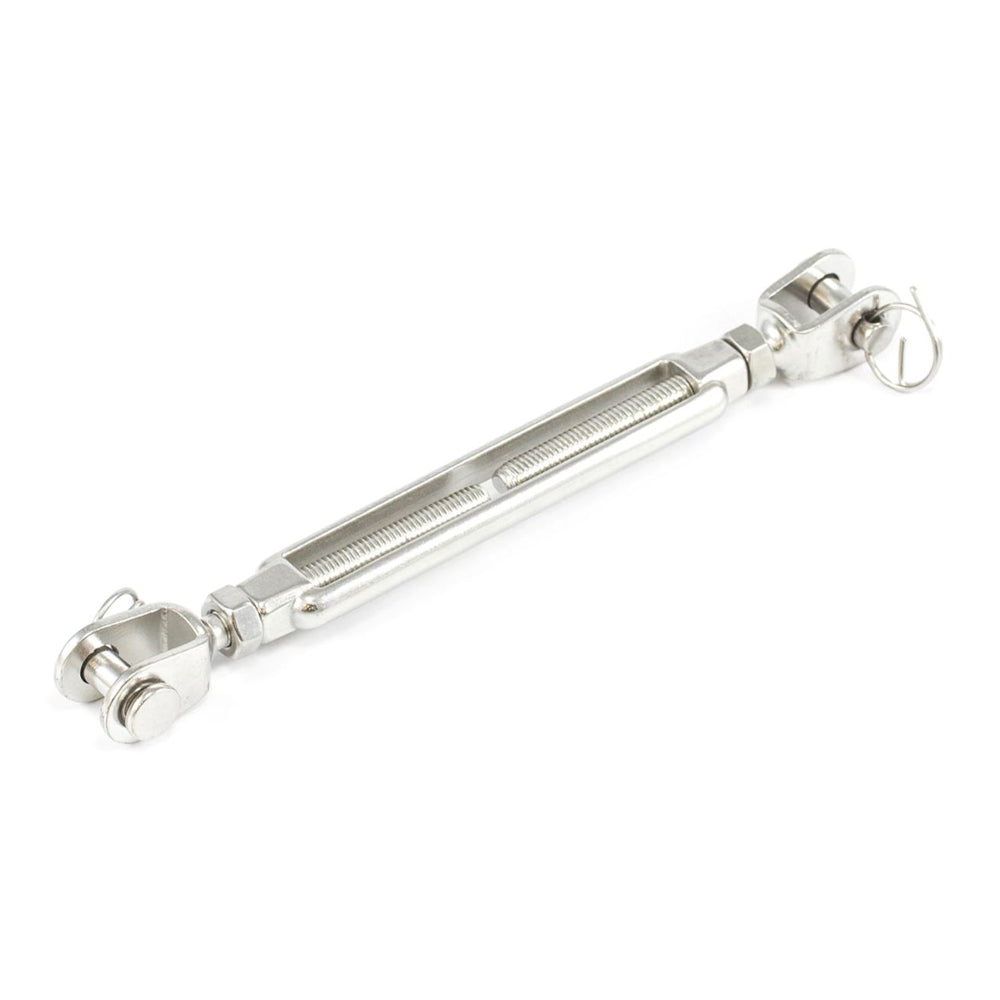

Stainless Steel Turnbuckle Jaw/Jaw
Stainless Steel Turnbuckle Jaw/Jaw
Regular price
$33.90
Regular price
Sale price
$33.90
Unit price
per
Couldn't load pickup availability
The turnbuckle is created from high-quality stainless steel 316. This jaw/jaw turnbuckle offers complete control of tension. The turnbuckle acts as a lifting and rigging link between the fabric and support structure.
Specifications
| Min. Breaking Load | Length | Size Opening | |
|---|---|---|---|
| 8mm | 3,417 lbs. (1,553 kg) | 196 mm (7.72 in) | 11 mm (0.43 in) |
| 10mm | 4,946 lbs. (2,248 kg) | 238 mm (9.7 in) | 12 mm (0.47 in) |
| 12mm | 7,081 lbs. (3,219 kg) | 324 mm (12.76 in) | 14 mm (0.55 in) |
**Note/ Disclaimer** The finished structure should be properly designed by a professional engineer and installed by a qualified contractor in accordance with local building codes. It is the responsibility of the fabricator within these parameters to determine the proper hardware for a particular installation.
